AHD-18D2GA4X14X

AHD-18D2GA4X14X

Price: $51.42

Available on backorder

Quantity:
SKU: AHD-18D2GA4X14X
ORDER ONLINE or CALL 877-231-9424

Description

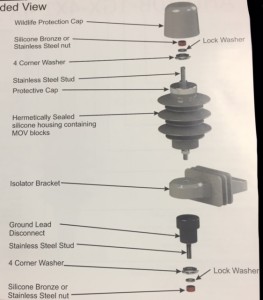

Arrester Heavy Duty


  • 18kV
  • Housing D (15 & 18kV)
  • Creepage: 25.2
  • Isolator Bracket Size: 2 (15-24kV)
  • With Ground Lead Disconnect
  • Nema A Crossarm Mounting
  • Hardware: Si Bronze nut, two 4-corner, lock wash (top)
  • No line term. wire (top)
  • Top 1-Wildlife Protection Cap
  • Hardware: Si Bronze nut, two 4-corner, lock wash (bottom)
  • No ground term. wire (bottom)

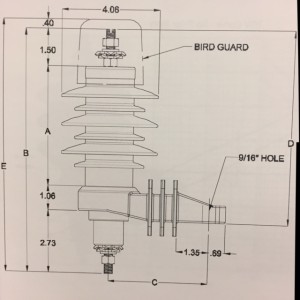

Housing Length:

  • A: 8-13/16″
  • B: 14-15/16″
  • C: 6″
  • D: 12-7/16″
  • E: 15-3/8″
